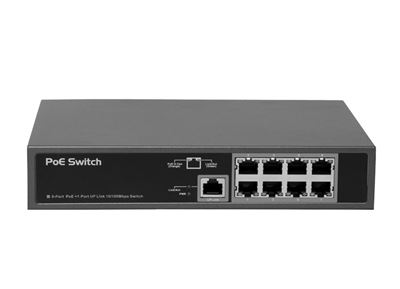

PES098EH
9 Port FE Switch with 8 POE Ports, 802.3af/at, 150W
- Model：
Original price：$0- Price：$999,999
Product Introduction
FEATURES
-
Compliant with IEEE 802.3af/at
-
8 POE ports + 1 uplink port
-
Supporting 30W maximum per POE port
-
Supporting10/100 Base-T applications
-
Auto MDI/MDIX crossover for all ports
-
LED-indicates for LNK/ACT and Power status
-
Supporting duplex mode (Half/Full) auto-detection
OVERVIEW
PES098EH is a 9 port FE switch that offers 8 POE ports and a 10/100Mbps uplink port. It is an economic solution to deploy and power diverse network devices via Ethernet UTP/STP cables, such as wireless access points, IP-based surveillance cameras, or IP phones in any places. By integrating the data transmitting cables and power cords, it saves much time in constructing your network.
|
Hardware Specification
|
|
Ports
|
9 x 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
|
|
LED Indicators
|
Power
Link/Activity
PoE In-Use
10/100 LNK / ACT
|
|
Switch Architecture
|
Store and Forward
|
|
Switch Fabric
|
1.8Gbps
|
|
MAC Address
|
1K MAC address table with Auto learning function
|
|
Power Requirement
|
AC 100~240V, 50/60Hz
|
|
Power Consumption
|
150 Watts
|
|
Dimension (W x D x H)
|
230 x 154 x 44 mm, 1U height
|
|
Weight
|
1.2 kg
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af/at Power over Ethernet / PSE
|
|
Power Output
|
54V DC, 30W Max.
|
|
Power Pin Assignment
|
1/2(+), 3/6(-), Mode-A
|
|
PoE Power Budget
|
130 Watts
|
|
PoE Port
|
8
|
|
Environmental & Safety
|
|
Operating environment
|
0~40 degree C, 10%~90%RH
|
|
Storage environment
|
-20 ~70 degree C, 5%~90% RH (non-condensing)
|
![]()
