Technical Specification

Standard

ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8

ANSI/TIA-568C.2 Category 6A

IEC 60603-7 Category 6A ISO 11801 2nd Edition Class EA

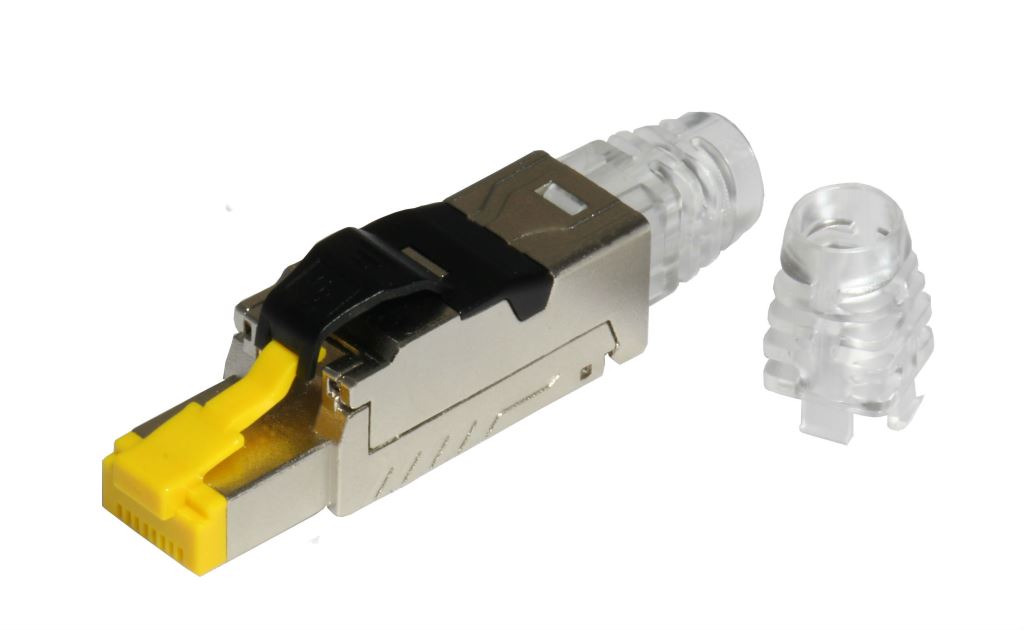

Plug IEC 60603-7

IEEE 802.3af/at PoE (PoE+) applications

Housing and cover material

Zinc die-casting with nickel plated

Insertion force

30N max. (IEC 60603-7)

Cable entrance diameter range

6.0mm~8.5mm

Insulation diameter range

0.95mm~1.45mm

Solid and stranded conductor

22AWG~26AWG (0.686mm~0.241mm)

Wire scheme

T568A / T568B

Retention strength

7.7kg between jack and plug

Operating temperature

-10℃~60℃ (ISO/IEC 11801, ANSI/TIA-568C.2)

Mating cycles

750 cycles minimum

IDC mating cycles

20 installation cycles minimum

RoHS compliancy

Compliant

Accessories

Copper foil tape*1
Boot: 7.3mm cable entrance *1
9.0mm cable entrance*1

Part Number

Part Description

CPFSP6A

CPFSPC8
