PD4121G
4 Pair 802.3at POE Splitter, 51W, Gigabit
- Model：
Original price：$0- Price：$999,999
Product Introduction
FEATURES
l Compliant with IEEE 802.3af/at
l Supplying power up to 51W
l Data rate: 10/100/1000Mbps
l Supporting either 2 or 4 Pairs PSE
l Plug and play
l 4 pairs high power POE

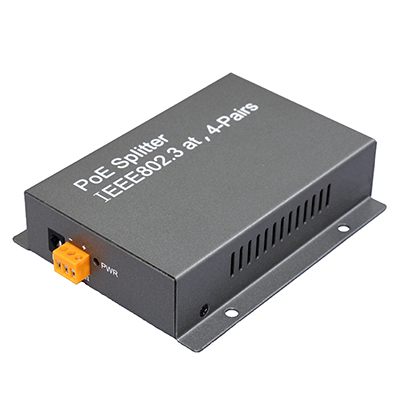

l Metal housing with mount holes
OVERVIEW
PD4121G is a high power POE splitter designed for high power network devices such as WiMAX CPEs,
802.11n Access Points, Pan/Tilt/Zoom (PTZ) IP Cameras, Video Phones, or Thin- Clients by 2 or 4 pair network cables.
As a high power POE splitter, PD4121G receives power (44V-57V) from Ethernet cables and supplies power up to 51W through a DC Jack or a 3 pins terminal block. With a metal housing and mount holes, it is convenient to install PD4121G in diverse environments.
SPECIFICATIONS
|
Standard
|
Standard IEEE802.3ab 1000
IEEE802.3u 10/100BASE-TX
IEEE802.3af/at
|
|
Connector
|
2x RJ45, shielded, EIA 568A or 568B
DC Jack: 5.5 x Φ2.1mm
Terminal Block: 3 pins (Output)
|
|
Pin Assignment
|
1/2(+) 3/6(-) & 4/5(+) 7/8(-)
|
|
Data Rate
|
10/100/1000Mbps
|
|
Power input
|
44-57V DC, 70W Max
|
|
Output Power
|
12V DC/ 51W Max
|
|
LED
|
Power (green)
|
|
Dimensions
|
100 x 134 x 30mm (W x D x H)
|
|
Weight
|
0.3 KG
|
|
DC Plug & Jack
|
5.5*2.5*mm (White); 5.5*2.1mm (Blue)
|
|
4.8*1.7mm (Yellow); 3.5*1.35mm(Red)
|
|
Operating Temperature
|
0 to 40°C
|
|
Storage Temperature
|
-20°C ~ 70°C
|
|
Operating Humidity
|
10%~90%RH
|
|
Storage Humidity
|
5%~95%RH
|
